Side Track Outdoor Blinds System

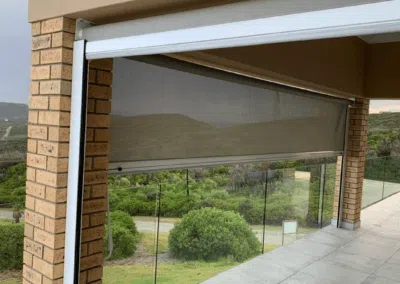

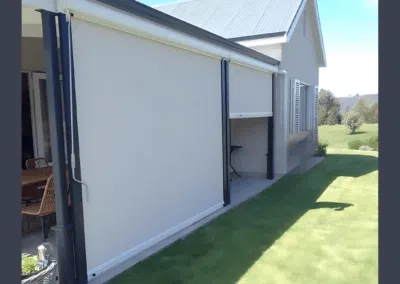

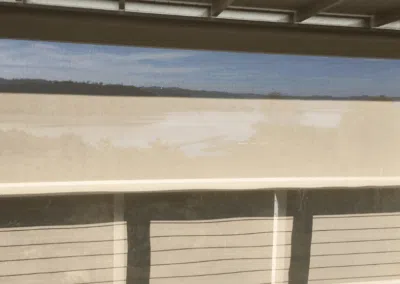

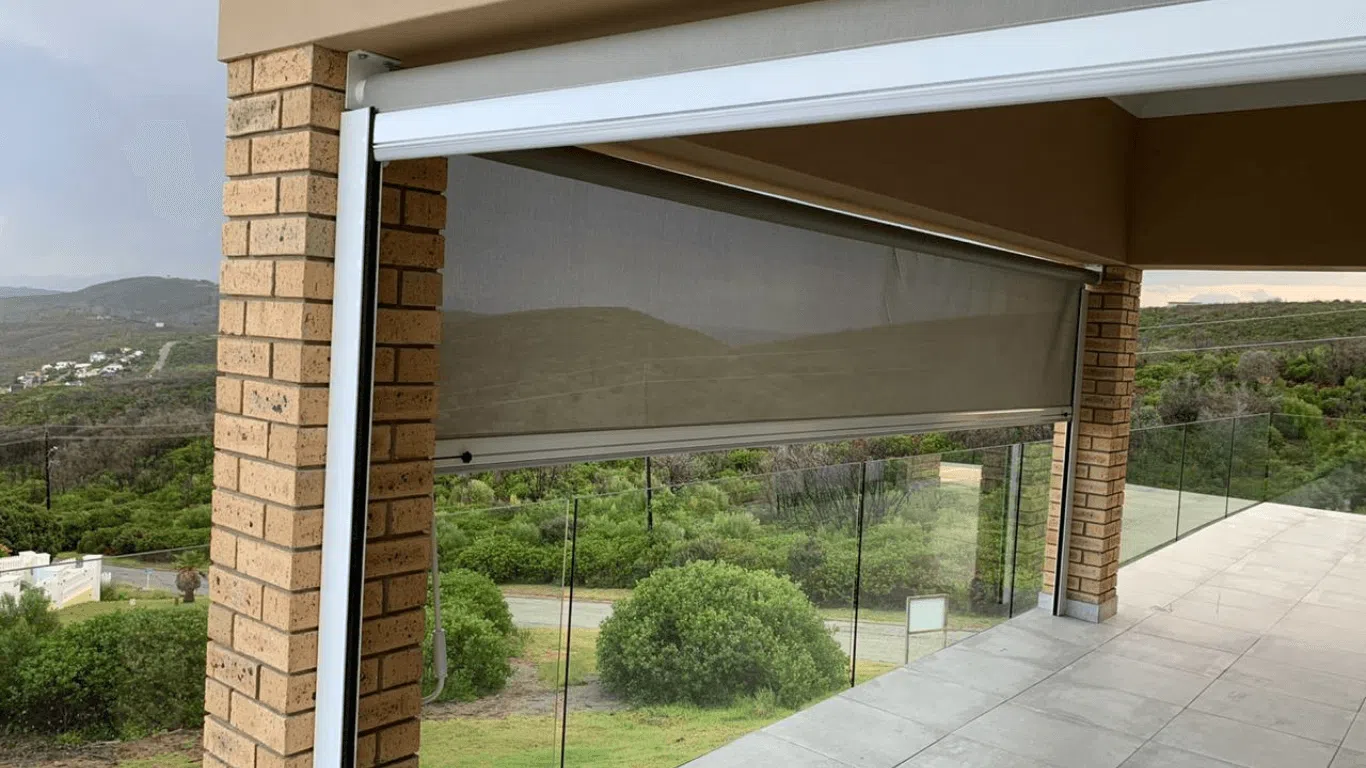

This canvas exterior blind that can be rolled up and tensioned by means of a gearbox and crank handle system. This blind (The Roller Tube) is protected/covered by an extruded white aluminium cassette that is completely closed on the front and back. The cassette has a removable front cover to make the tube and top components accessible.

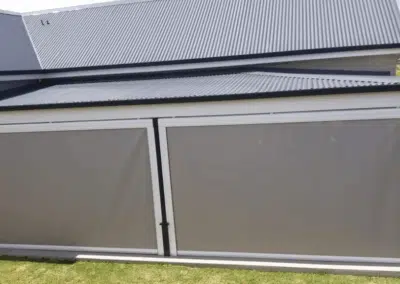

The gearbox is a 7:1 or 10:1 ratio reduction gearbox with a detachable crank-handle. The sides of the blind fabric is housed in extruded,white aluminium side tracks thus eliminating any gaps. The extruded, white aluminium bottom bar (purpose designed and made) also slides in the side tracks and is locked into the down position by means of a pair of concealed, stainless steel sliding rods.

A pair of custom designed, powder coated white, cast aluminium end caps/ brackets supports the top roller tube and the cassette extrusion. The cassette brackets allow for a top fix installation and are concealed. Face fix brackets are available as an optional extra
